Oceanus Mini ROV

MarineNav's Oceanus Mini ROV system includes the following:

Oceanus Mini/Pro ROV topside control system
Proprietary ROV Flight Control System software
Oceanus joystick/hand-held controller (v3.0)
A multi-function wireless keyboard
26-ballast weight bolts and nuts
An AC power cable and IP65 HDMI cable
Spare fasteners kit
IP-rated rugged hard-shell transport cases
Operator manual and documentation
MarineNav’s 3-year limited warranty*

Technical Information

Includes Oceanus Mini ROV, Oceanus Mini/Pro Topside Control System, and Oceanus Hand Controller (v2.1).

The compact and robust design made of marine-grade aluminum provides excellent maneuverability and durability. The ROV features a 1080p HD camera with 120° tilt and two 1500-lumen front lights for clear underwater visibility.

The system comes with a topside control unit with a touch screen and a built-in 500GB SSD for extensive data storage. Designed for depths up to 305 meters, the Oceanus Mini is ideal for inspection tasks and light missions.

Standard Configuration

STANDARD DEPTH RATING OF OF 400m (1312 ft).

The Oceanus Mini ROV is independently certified to a depth of 400m (1312ft). Repeated dives to depths beyond 300m require an optional system upgrade.≠

MAXIMUM SPEED OF 4 KNOTS

Maximum speed test performed with the ROV fitted with an optional performance float block. (ROV ballast weights and accessories were not included when the ROV speed test was conducted).

ROV DRY WEIGHT OF 10.8 kg (23.8 Lb)

Compact design and reduced footprint equate to a lightweight ROV. ROV ballast weights are not included as part of the ROV dry weight.

LATERAL AXIS ROV MOVEMENT

An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability, control ROV depth, horizontal and lateral movement. ROV flight controls include auto-depth, heading hold and ROV stabilize modes.

1080P HD VIDEO

A high-definition camera with +/- 160° tilt functionality provides stunning image captures.

ONE ROV AUX PORT

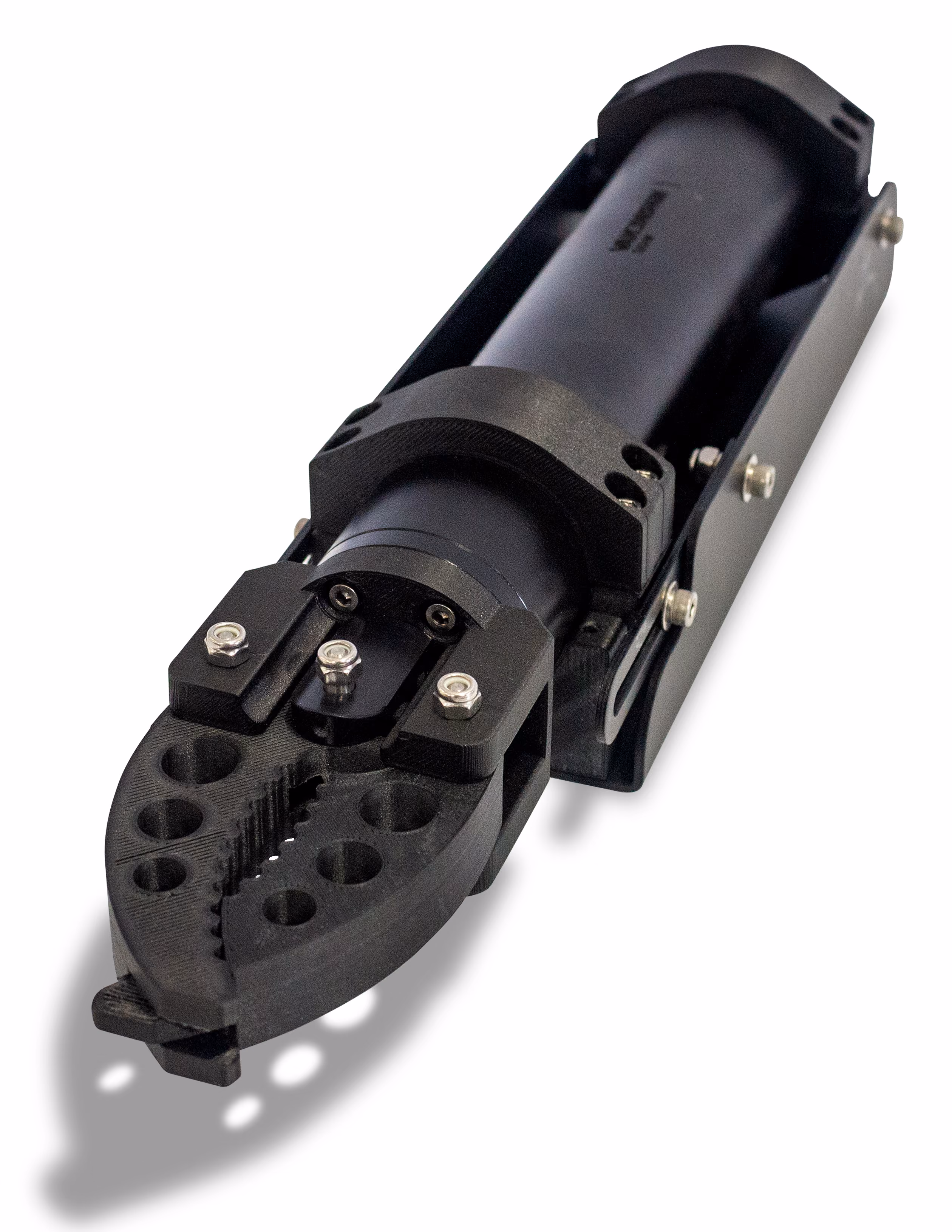

Capable of 1 x RS485 / Manipulator / 12VDC.

TWO 1500 LUMEN FRONT LIGHTS

Two front-facing ROV lights with incremental brightness control are achieved using the topside Flight Control Software or, corresponding button commands on the handheld joystick controller.

OCEANUS JOYSTICK HANDHELD CONTROLLER (v3.0)

Manufactured from marine-grade aluminum, the joystick/hand-held controller features 16 integrated function keys, a conveniently positioned thumbwheel and a hall-effect joystick that controls essential ROV functions.

SETTINGS

Internally saved, persist through power cycles.

FLEXIBLE ATTACHMENT OPTIONS

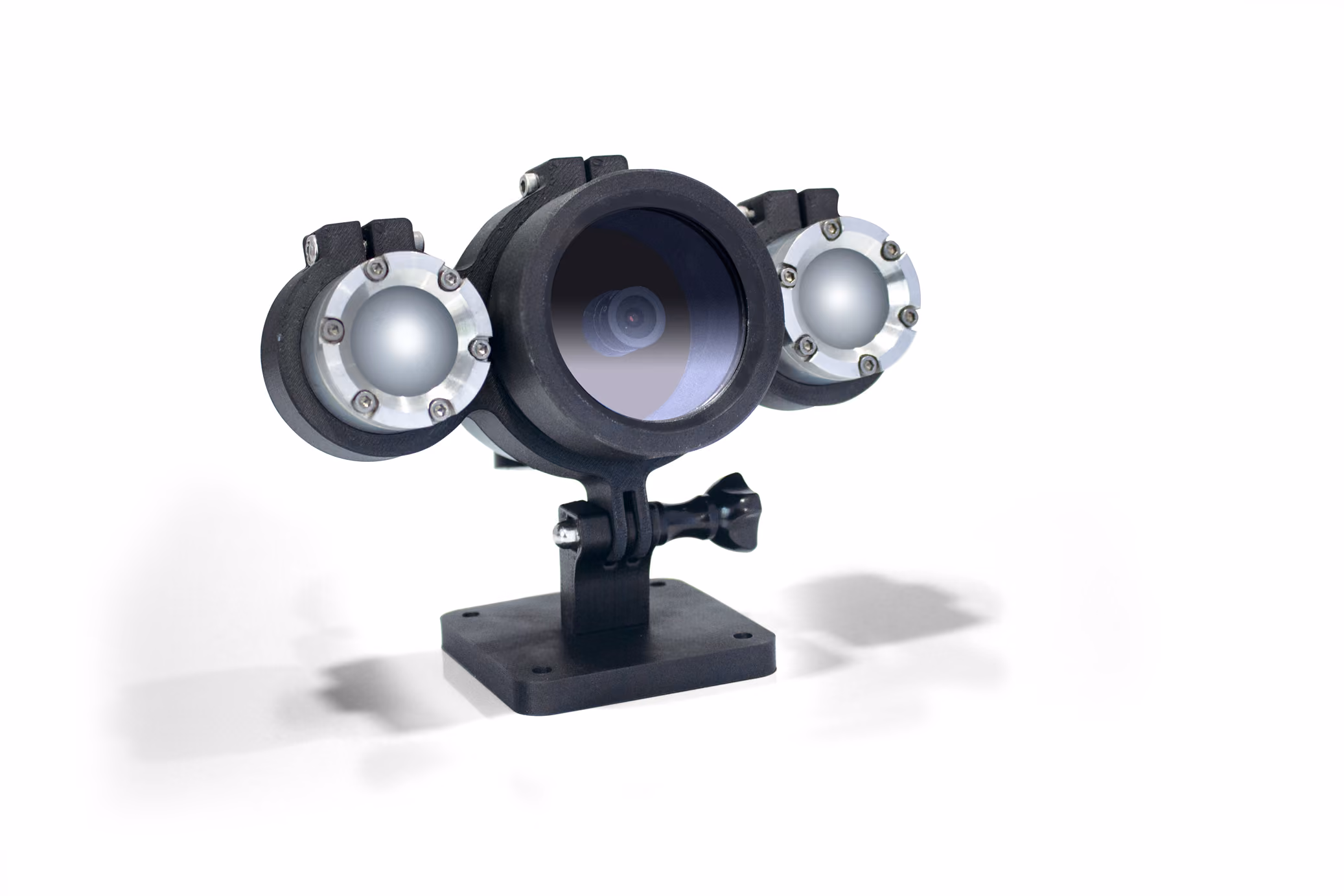

The Oceanus Mini ROV is compatible with the Oceanus Pro topside control system and many Pro Classic ROV accessories.

PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE

With an exterior measurement of 508mm/20.0" (L) x 355.6mm/14.0" (W) x 203.2mm/8.0" (H) and weighing 19.41 kg (42.8 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini ROV system.

WIDE-SCREEN VIDEO DISPLAY

18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.

INDUSTRIAL COMPUTER AND 1TB SOLID-STATE DRIVE TOPSIDE

The topside control case features an i7 industrial computer and a large built-in 1TB SSD which stores hours of content.

TOUCH-SENSITIVE USER INTERFACE

MarineNav’s proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on the topside’s secondary 10.1" TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).

ON-SCREEN DISPLAY (OSD)

Real-time data includes recording time, voltage, water temperature, depth, and date/time stamp. Heading and attitude are overlaid or embedded with video. Custom user input lines are available. When paired with an accessory, GPS coordinates are displayed as an overlay option, with an enabled data entry field. The addition of a customized logo is available as an optional upgrade.
